LiquiCount LC1

LiquiCount LC1 is the smart, hassle-free solution for accurately tracking usage across a wide range of applications. Whether it's liquid measured in gallons or litres or items on a production line.



Anywhere you have a system with one or two pulse streams from existing sensors, the LC1 can count those pulses and convert them into meaningful units (Litres, Gallons or items). The LC1 integrates with pumps and flow meters and other sensor that produces a pulse.



Engineered for ease of use, the LiquiCount LC1 requires a simple one-time calibration—after that, it’s effortless. Once installed and powered, it automatically detects pulses and instantly displays real-time volume data on its clear LCD screen. No complicated setup, no unnecessary parameters—just accurate, reliable readings across any environment.



Designed to fit simply into a standard 92mm x 92mm panel cut-out, it can replace existing, defective or obsolete counters. Part of the design brief was for the unit to be (factory) repairable rather than be thrown away, saving money and less waste.



Precision you can count on—whatever the application.

Information

The LiquiCount LC1 is a dual-channel pulse counter designed for flexible integration into a wide range of pulse generated handling systems. The LC1 has been engineered to install easily, configure quickly, and deliver intuitive operation across multiple industries.



The LC1 accepts pulse inputs from proximity switches, turbine meters, or digitiser outputs and other pulse generated sensors. All inputs and outputs are electrically isolated from the onboard controller for safety and reliability. These pulses are converted into measurable units, which can be displayed in either litres (L), gallons (G) or Items(I). Each channel’s K-factor is fully adjustable, allowing calibration to match the specific characteristics of your sensors.

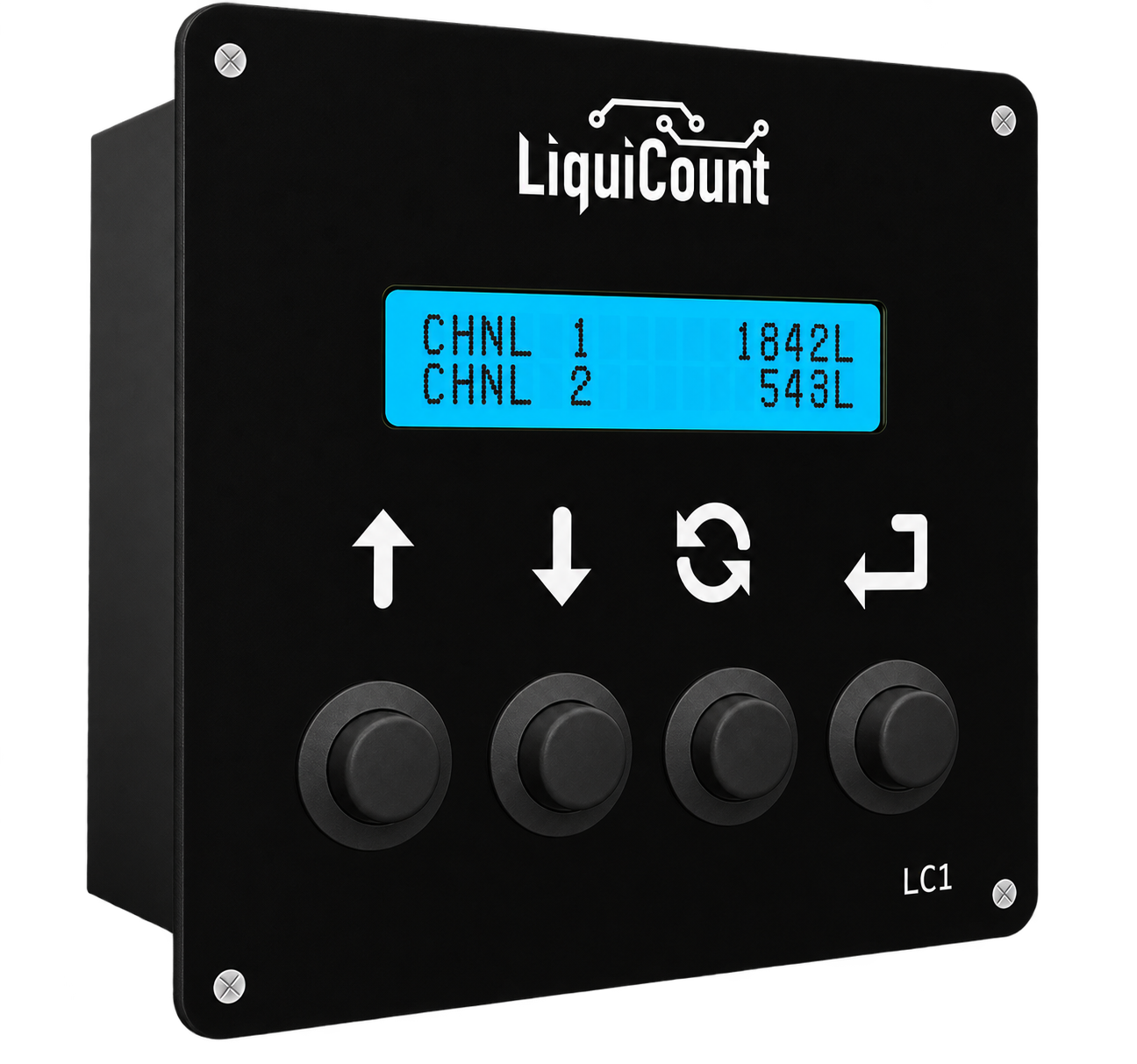

A bright, backlit LCD shows the total count volume measured during the current job or session. Values can be reset at any time to start a new measurement cycle. In many applications, the LC1 also provides digital outputs —grounding pulses that correspond to defined units—making it compatible with external systems such as printers, loggers, or PLCs.



Advanced configuration is accessed via a secure, engineer-only menu, protected by a keycode. Within this menu, K-factors can be tuned and digital outputs tested by triggering sample pulses without dispensing fluid, making it ideal for setup and verification. The displayed labels on the standard display screen can be changed to display any word that uses the Roman alphabet and numbers 0 to 9. There are 9 characters available per channel.



The LC1 operates on standard 12 to 24V DC systems and connects directly to modern two or three-wire PNP proximity switches without requiring external resistor networks.



Whatever industry,  the LiquiCount LC1 delivers precision, flexibility, and reliability you can count on.
